Common Field Issues and Mistakes can be Avoided

November 11, 2013 in Wood Products - #tech talk #trus joist

As the housing market continues its path to recovery, certain mistakes when using engineered wood products (EWP) are becoming more common. Many of the issues being seen are similar to pre-2007 construction, where the demand for housing allowed for an abundant workforce with a wide range of backgrounds and levels of experience.

Today it seems the issues are begat by a lack of knowledge in the labor force as builders and contractors who, despite being able to weather the industry storm themselves, have lost many of their “go-to” tradespeople who were not as fortunate.

Luckily, the proper techniques are already established to help avoid unnecessary delays during construction or complaints after a job is completed.

Squash Blocks vs. Blocking Panels vs. Web Stiffeners

Misunderstandings with the use of squash blocks (vertical 2x members cut 1/16” longer than a joist), blocking panels (1’ to 2’ long sections of TJI® joists placed perpendicular to floor joists over a bearing wall) and web stiffeners (small cuts of OSB or 2x material placed on each side of a TJI web) are common.

Squash blocks transfer vertical loads from above a TJI joist to the bearing directly below and are typically installed on both sides of a TJI joist. Squash blocks can support significant loads while at the same time allowing mechanicals to pass through a joist cavity over a beam or wall. Squash blocks, however, DO NOT provide lateral stability to a joist system.


Left: Squash blocks installed to support load from above.
Right: Load from above without squash blocks or blocking panels caused this web to buckle. Blocking panels should have also been used to provide lateral support to the joist ends.

Blocking panels can also transfer vertical loads from above a TJI joist to a bearing below, most commonly in a case where a bearing wall is stacking from one level down to the next (squash blocks may still be necessary for any large point loads). Blocking panels also are used to provide lateral support to joists—placing a blocking panel between joist ends is one way to provide the required lateral support to help prevent them from rolling over.

Unlike squash blocks and blocking panels, web stiffeners do not transfer vertical load around a TJI joist. Instead, web stiffeners reinforce the web and provide additional bearing capacity to a TJI joist. In cases where the sides of a joist hanger do not extend up to the top flange of a TJI joist, web stiffeners are also used to provide lateral stability within the hanger.

Fortunately, a floor layout prepared in our Javelin® software should help remove much of the confusion for these accessories since it identifies most of these conditions in the design check process. While it is always appropriate to follow good construction practice and provide a continuous load path to foundation with solid blocking below point loads, any other necessary squash blocks or blocking panels should be specified on the layout provided with the floor system. In many parts of the floor system these components are not needed, but when required they are critical and must to be installed if they are shown on the layout.

Cutting and Repairing TJI Webs and Flanges

Many “rules of thumb” still exist in the construction industry, including where holes and notches can be cut. Code discusses holes and notches together, resulting in some confusion. While notches in solid sawn framing are limited to the outer 1/3 of the joist span, holes are not. However, I know of multiple cases where builders were installing and/or building officials were requiring holes to also be located in the outer 1/3 of the span.

Typically, the stresses in the flanges of a TJI joist (and along the top and bottom edge of a 2x floor joist) are highest in the middle of a span and lowest at the ends, hence allowing notches only near the end of a solid sawn joist. However, the opposite is true for the web of a TJI joist (and near center depth of a 2x floor joist), where stresses are lowest near mid-span and highest near the ends. This is reflected in the hole charts for TJI joists, where larger holes are permitted further from bearing.

Notches in a TJI joist flange should be avoided. If a flange is notched, it should be replaced or evaluated for repair.

Certain notches and holes cut close to bearing can be evaluated without contacting our technical support team, saving time for the builder, and was discussed in my previous blog post. If holes or notches fall outside of these, a repair should not be attempted without contacting support first. Often times a field designed repair prevents a repair from our engineers from being used—possibly forcing the entire joist to be headered off or replaced.

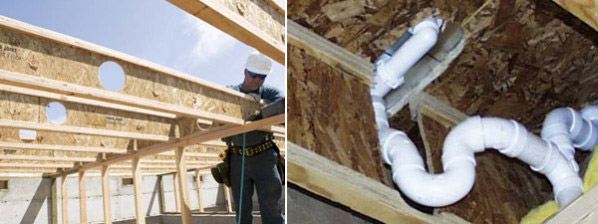

Left: TJI joists can accommodate larger holes further away from bearing.
Right: Joists with extensive damage will likely require a header or a new joist placed alongside.

EWP Can Withstand Anything, Right?

Since EWP has higher design strength and stiffness properties, some people feel it can tolerate being handled and installed in any application. While the enhanced properties of EWP do open the doors to many design possibilities, wood is still wood and limitations still exist.

[li]EWP products are intended for dry-service applications. The only exception to this is Parallam Plus PSL, a preservative treated version of Parallam PSL. TJI joists, Microllam LVL, TimberStrand LSL and non-treated Parallam PSL will suffer comparable performance degradation (and eventual rot) as other non-treated wood when left exposed to moisture.[/li]
[li]Similarly, EWP is still wood and can act as a suitable host for organic growth like mold if the right combination of moisture, temperature and other factors are present.[/li]
[li]Significant cuts and notches will greatly decrease the capacity of EWP. Often we are asked how to “fix” a beam that has a large notch, or was used as a hip or valley beam where the inside face hangs well past the inside of the bearing wall. Since EWP often supports more load than a similar sized piece of dimension lumber, cuts and notches can have a larger impact. Often the only “fix” is to add more plies or add bearing below the un-notched section.[/li]

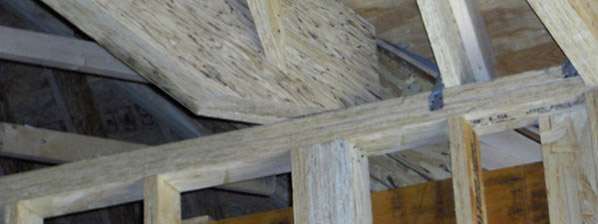

Seat cuts overhanging the inside face of bearing can significantly reduce the amount of load a beam can support.

While the issues listed here seem to come up regularly, the underlying causes can be overcome. Simply following the Javelin software floor framing layout, referencing details shown in our Installation Guide, using good construction practice, following the TJI joist hole chart and handling EWP with a similar mindset as regular lumber (keep it dry and limit overcuts and notches) will prevent a lot of unnecessary issues and delays.

And if you are ever in doubt, you can always contact us by phone (888-453-8358) or through our tech support website.
